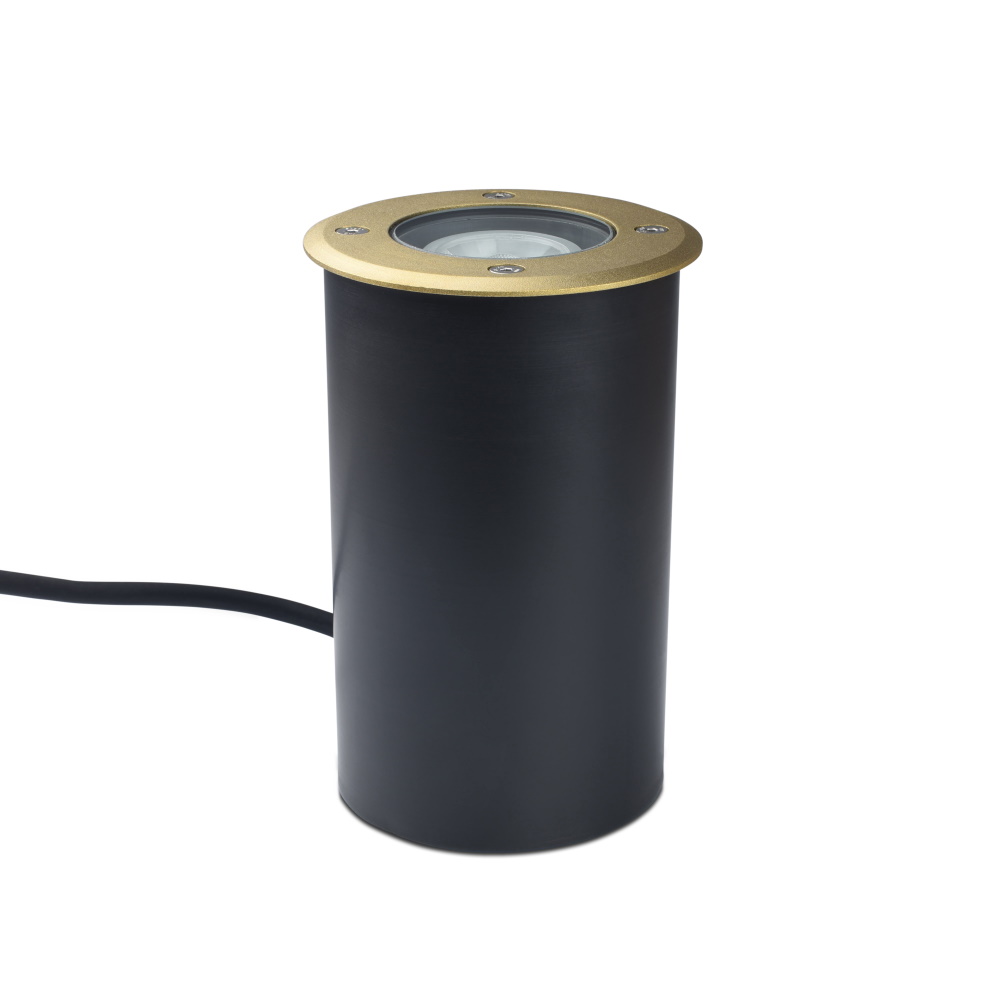

The Elipta Modula (brass) is a stylish 12v recessed uplight which takes a choice of 3w - 8w LED lamp. This garden light Modula has a flush lens as standard and the light is located by an "O" ring on the body into a sleeve tube. To facilitate the removal of screws for future relamping or other maintenance, apply copper grease to the threads of all screws being fitted for retention of bezels, grills or other top plates or retaining rings.
Copper grease resists degradation due to heat and protects against difficulty in removing screws, particularly where stainless steel screws are fitted with aluminium parts. It may also be used on screw threads of screw-off bezels or glare shields. Ensure surplus is cleaned off with a solvent to prevent staining in use.
Colour/Finish:
Fine sandblasted cast brass finish looks good on decking, timber, sandstone and buff brick
IP Rating:
IP67
Construction:
Front bezel is attached to tubular aluminium body. 2m cable via rear entry cable gland
Input Voltage:
12v
Lamp Type:
3w - 7w l.e.d. lamp MR16 L.E.D. lamps include white or warm white 50,000 life and low energy consumption make them a popular option
Installation:
The plastic sleeve is built in during construction or retrofitted into a hole cut with a coring bit: the light pushes into the tube, where it is held firmly in place by an o-ring. Connect input cable to cable from transformer using T9962 cable joint or T9963 cable splice kit.
